ascend-tools/faster_install/for_1.7x.0.0/README_EN.md

EN|中文

Ascend Development Environment, for Atlas 200 DK, Atlas 300

version: 20.0.0.RC (1.73)

Introduction

This script is applicable to the Ubuntu 18.04 OS and can be used to quickly install development environment, including the Python environment and MindStudio.

Preparations

1. Ubuntu 18.04 (x86).

2. Download the Toolkit packages (Ascend-Toolkit-[version]-x86_64-linux_gcc7.3.0.run and Ascend-Toolkit-[version]-arm-linux_gcc7.3.0.run) from https://www.huaweicloud.com/ascend/resource/Software for MindStudio installation. Save the downloaded packages to the $HOME directory.

Some samples require the Ascend310-driver-1.73.5.1.b050-ubuntu18.04.aarch64-minirc.tar.gz package. The package can be downloaded from the preceding website. You can download and decompress it as required.

3. Configure the download source. (The following provides a method for the configuration.)

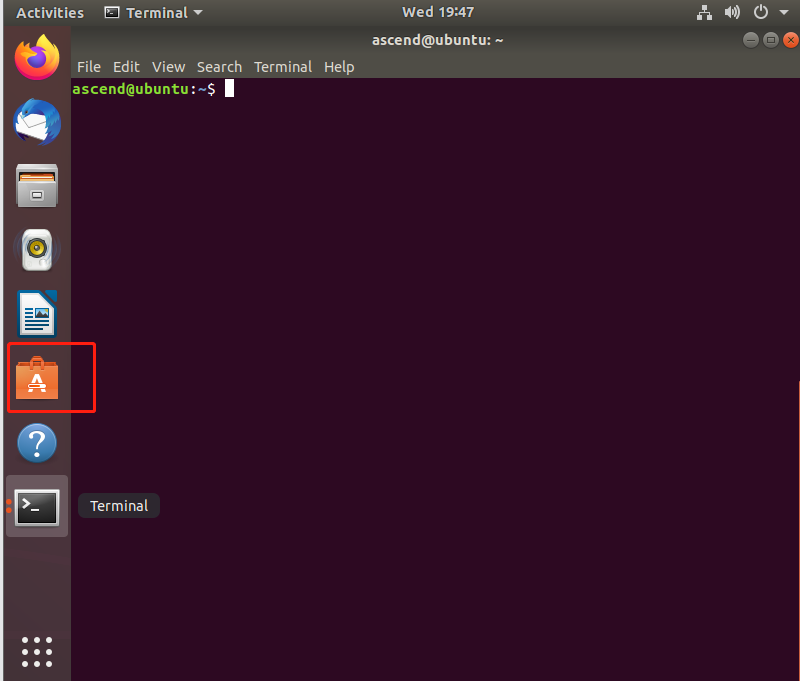

(1) Click the icon in Step 1.

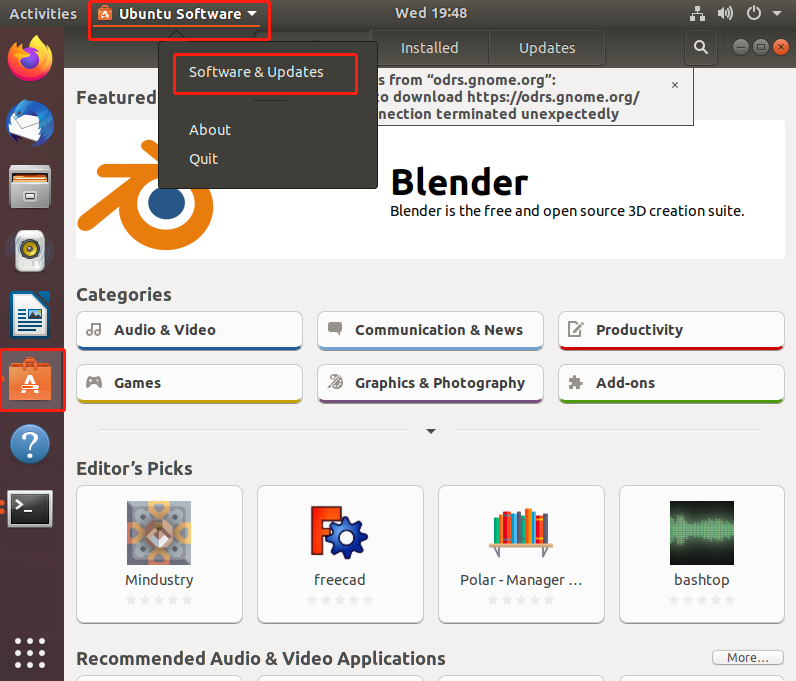

(2) Click the icon in the red box in Step 2.

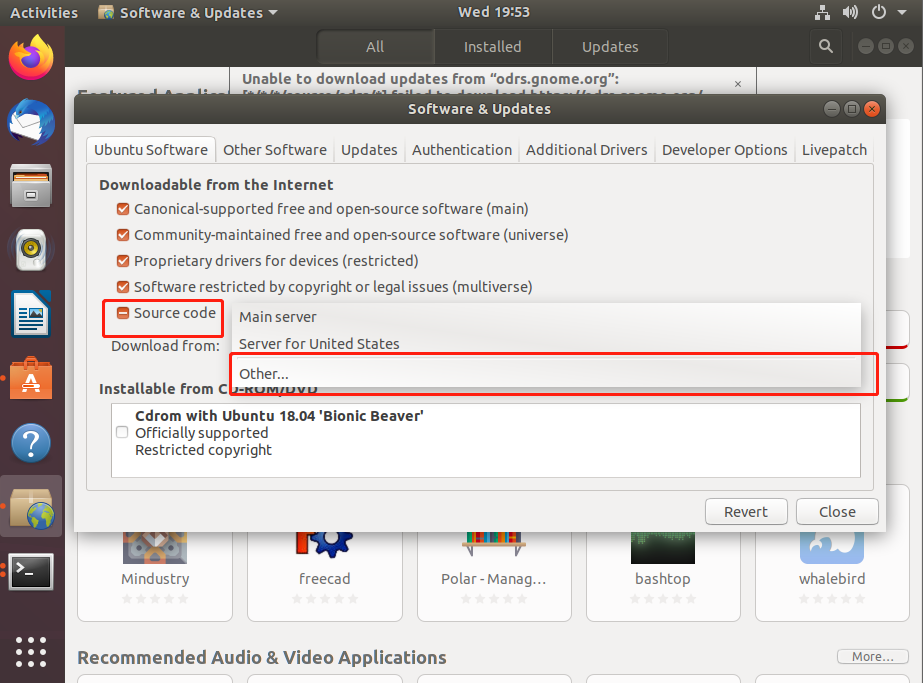

(3) Select the fifth option in Step 3 and select Other.

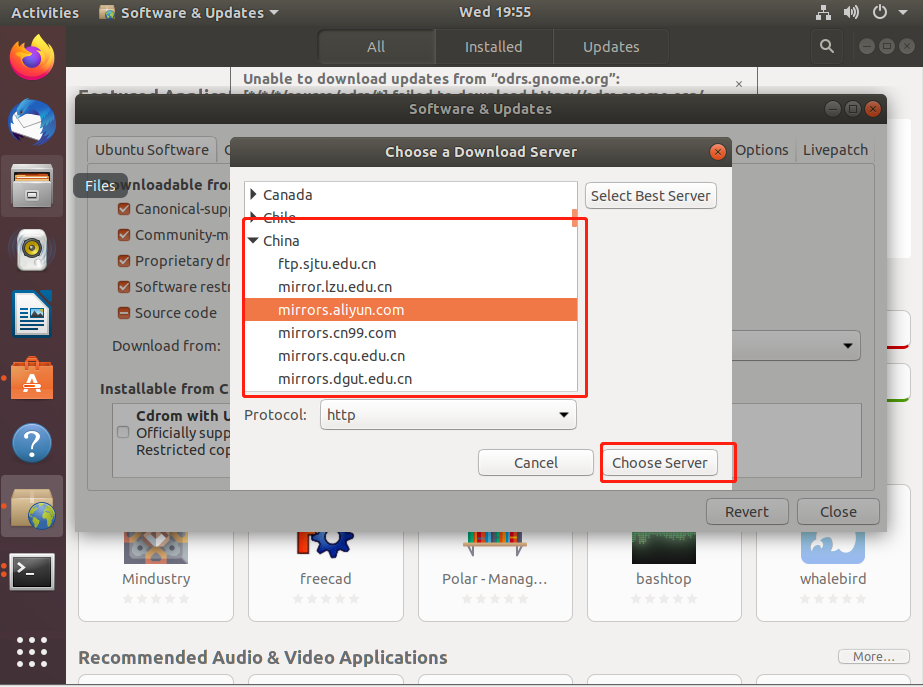

(4) Select the source as needed, as shown in the following figure.

Instructions

1. Download the faster_install.sh script. Run the following command on the Ubuntu server to go to the $HOME directory:

cd $HOME

Download the faster_install.sh script.

git clone https://gitee.com/ascend/tools.git

Copy the faster_install.sh script from the faster-install directory to the $HOME directory.

cp ~/tools/faster_install/for_1.7x.0.0/faster_install.sh .

Run the script.

bash faster_install.sh

2. After the installation is complete, the following page is displayed. Select the option (the third line) in the red box in the following figure and click OK.

3. Select the option in the red box.

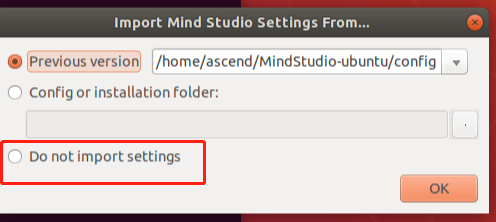

4. Select the option as shown in the following figure, and click OK.

5. MindStudio is automatically closed. In this case, restart MindStudio. The C7x development environment is now installed.
